It’s been a little while since I’ve had a chance to do an exploded view illustration for a client and this one for Mirolin Industries Corporation was interesting. We illustrated it in full color to realistically match the actual components.

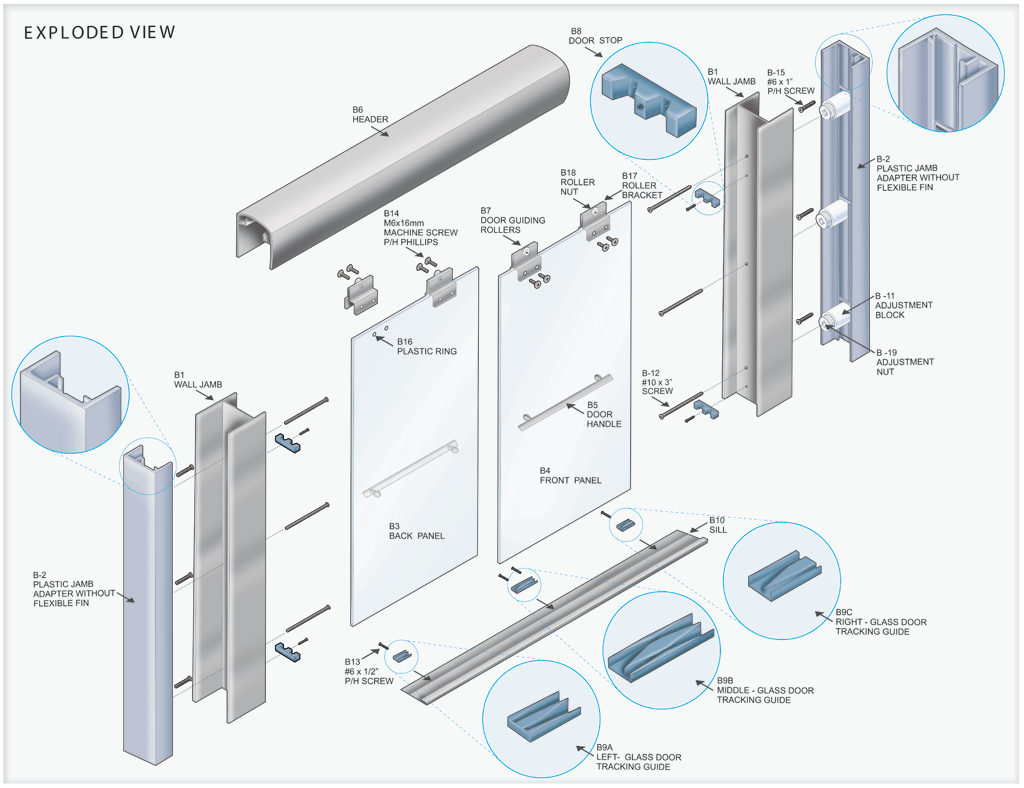

The exploded view of the shower door is done as an isometric illustration with callouts to specific items to show further details for the consumer piecing it together.

Thanks to George for his vision and direction on this project.
